Image is only for illustration purposes, refer to description for more information

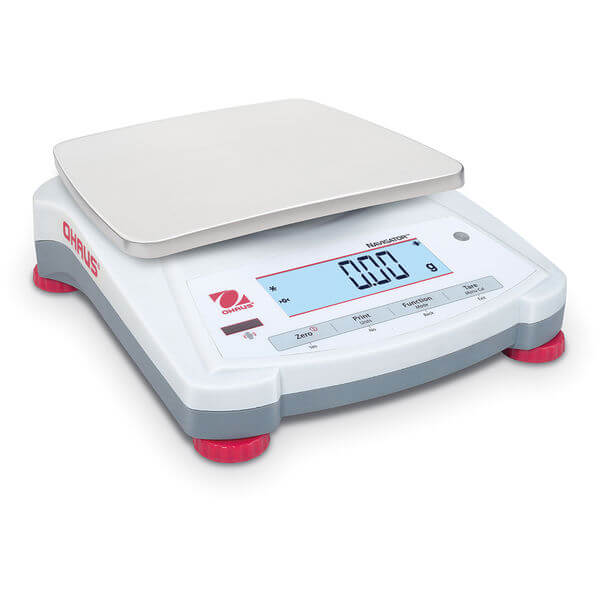

Ohaus Navigator Balance 3200G x 0.01G, pan size 190x144mm

Brand: Ohaus
SKU: NV3202
POA

i h
Product Files
OVERVIEW
OHAUS raises the bar in price-performance ratio with the newly-designed Navigator series which is perfect for general weighing applications in laboratory, industrial and education settings. Ruggedly constructed and multifunctional, the Navigator's a powerful balance that can handle a diverse range of weighing applications with features such as fast stabilization time, overload protection at four times its rated capacity, and easy operation.

APPLICATIONS
Weighing, Parts Counting, Percent Weighing, Checkweighing
Display
Liquid Crystal Display (LCD) with backlight
Operation
AC adapter (included) or 4 C batteries (not included)
Communication
RS232, USB, or Ethernet (available as accessories)
Construction
ABS housing, stainless steel pan, transportation lock, slip-resistant and adjustable feet, leveling bubble
Design Features
Menu and calibration lock switch, mechanical and software overload/underload protection, stability indicator, low battery indicator, auto shut-off, user-selectable print options, user-selectable communication settings

SPECIFICATIONS
Maximum Capacity3,200 g
Readability0.01 g
Pan Size5.7 in x 7.5 in (144 mm x 190 mm)
Battery Life200 Hours with Disposable Batteries
CommunicationEthernet (Available as an Accessory);  RS232 (Available as an Accessory);  USB Device (Available as an Accessory)
Auxiliary Display ModelNot Applicable
Dimensions9.1 in x 2.8 in x 8 in (230 mm x 70 mm x 204 mm) (LxHxW)
DisplayLCD Display with white backlight
In-Use CoverNo
Legal for TradeNot applicable
Linearity ±0.05 g
Net Weight2.2 lb (1 kg)
Pan ConstructionStainless Steel
Power4 C (LR14) Batteries (Not Included);  AC Adapter (Included)
Repeatability, typical0.02 g
Stabilization Time2 s
Tare RangeTo capacity by subtraction
Transportation CaseAvailable as an Accessory
Units of MeasurementSingapore Tael;  Ounce Troy;  Pennyweight;  Kilogram;  Grain;  Tical;  Pound:Ounce;  Newton;  Taiwan Tael;  Gram;  Hong Kong Tael;  Pound;  Tola;  Ounce;  Carat
Working Environment50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85% RH, non-condensing)
*
*
*
*
*
