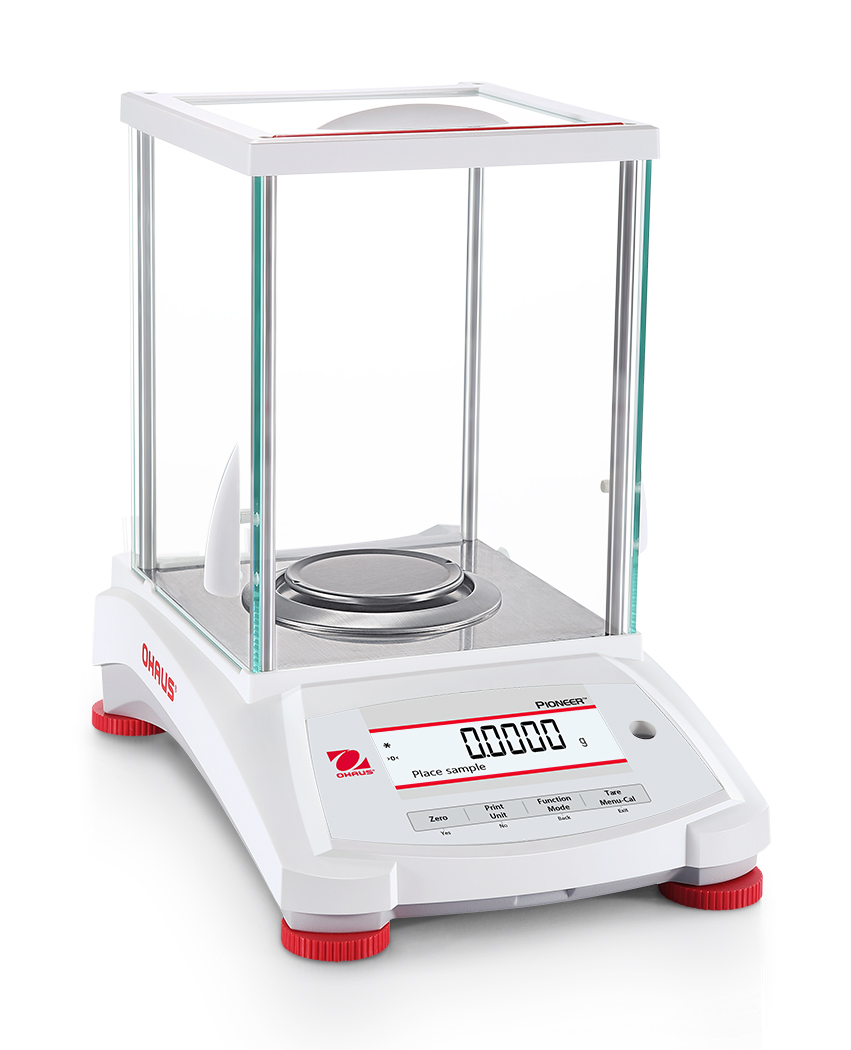

Image is only for illustration purposes, refer to description for more information

Ohaus Precision Balance 5200g x 0.01g, internal calibration, pan size 180mm

Brand: Ohaus

PIONEER™ PRECISION

Affordable Balance to Achieve Reliable Results

PX5202

Maximum Capacity 5,200 g

Readability 0.01 g

Pan Size 180 mm

SKU: PX5202
POA

i h
OVERVIEW
The Pioneer PX combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings. The PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.

Applications
Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination
Display
Backlit Liquid Crystal Display (LCD); Second line display for additional information or guidance (dot matrix)
Operation
AC adapter (included)
Communication
RS232 and USB device (included); GLP/GMP data output with real-time clock
Construction
Metal base, plastic top housing, removable stainless steel pan, glass draftshield, integrated weigh-below-hook, security bracket, calibration lock and in-use cover
Design Features
User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages

SPECIFICATIONS
Maximum Capacity5,200 g
Readability0.01 g
Pan Size180 mm
Internal CalibrationInCal™ - Semi Automatic
Draftshield—
Auxiliary Display ModelAvailable as an Accessory
Battery LifeNot applicable
CommunicationUSB;  RS232
Dimensions321 mm x 98 mm x 209 mm (LxHxW)
Display2-Line LCD with Backlight
Inuse coverIncluded
Legal for TradeNo
Linearity ±0.02 g
Minimum Weight (USP, 0.1%, typical)20 g
Minimum Weight8.2 g
Net Weight7.7 lb (3.5 kg)
Pan ConstructionStainless Steel
PowerAC Adapter (Included)
Repeatability, typical0.01 g
Stabilization Time1 s
Tare RangeTo capacity by subtraction
Units of MeasurementSingapore Tael;  Pennyweight;  Ounce Troy;  Kilogram;  Grain;  Tical;  Custom;  Newton;  Momme;  Taiwan Tael;  Baht;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Ounce;  Carat
Working Environmentoperability guaranteed between 41°F and 104°F;  50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C;  10°C – 30°C, 80%RH, non-condensing)
*
*
*
*
*
