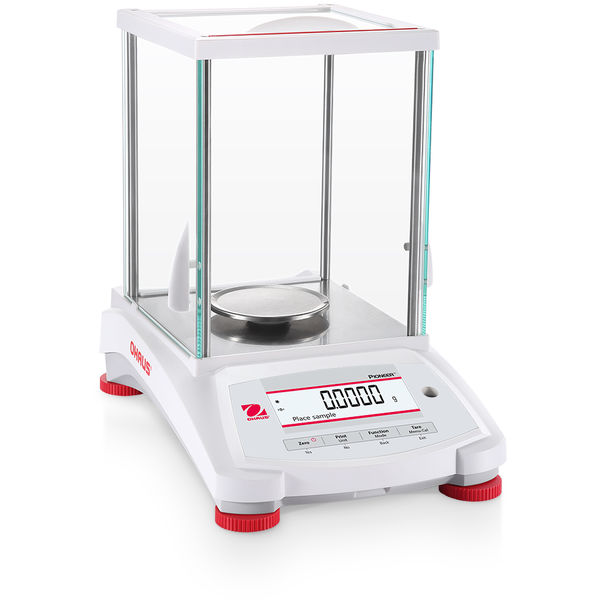

Image is only for illustration purposes, refer to description for more information

Pioneer Analytical Balance, 220g Capacity x 0.1mg, pan size 90mm dia, Internal calibration

Brand: Ohaus

PIONEER™ ANALYTICAL

Combining Economy and High Performance for Essential Weighing

PX224

Maximum Capacity 220 g

Readability 0.1 mg

Pan Size 90 mm

SKU: PX224
POA

i h
Product Files
OVERVIEW
The Pioneer PX combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings. The PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.

Applications
Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination, Formulation
Display
Backlit Liquid Crystal Display (LCD); Second line display for additional information or guidance (dot matrix)
Operation
AC adapter (included)
Communication
RS232 and USB device (included); GLP/GMP data output with real-time clock
Construction
Metal base, plastic top housing, removable stainless steel pan, glass draftshield, integrated weigh-below-hook, security bracket, calibration lock and in-use cover
Design Features
User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages

SPECIFICATIONS
Maximum Capacity220 g
Readability0.1 mg
Pan Size90 mm
Internal CalibrationInCal™ - Semi Automatic
DraftshieldIncluded
Auxiliary Display ModelAvailable as an Accessory
Battery LifeNot applicable
CommunicationUSB;  RS232
Dimensions321 mm x 309 mm x 209 mm (LxHxW)
Display2-Line LCD with Backlight
In-Use CoverIncluded
Legal for TradeNo
Linearity ±0.0002 g
Minimum Weight (USP, 0.1%, typical)200 mg
Net Weight10 lb (4.5 kg)
Pan ConstructionStainless Steel
PowerAC Adapter (Included)
Repeatability, typical0.0001 g
Stabilization Time3 s
Tare RangeTo capacity by subtraction
Units of MeasurementSingapore Tael;  Pennyweight;  Ounce Troy;  Kilogram;  Grain;  Tical;  Custom;  Milligram;  Newton;  Momme;  Taiwan Tael;  Baht;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Ounce;  Carat
Working Environmentoperability guaranteed between 41°F and 104°F;  50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C;  10°C – 30°C, 80%RH, non-condensing)
*
*
*
*
*
