Image is only for illustration purposes, refer to description for more information

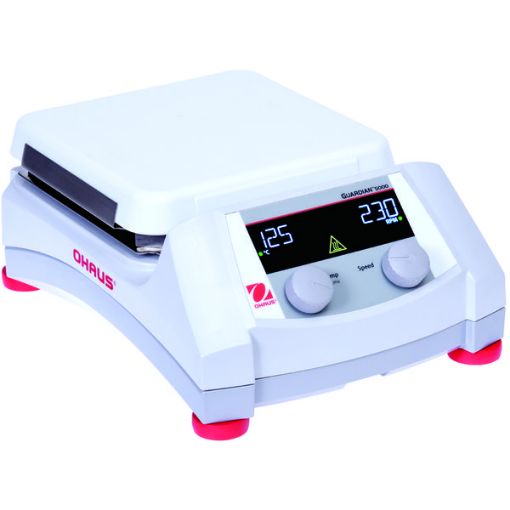

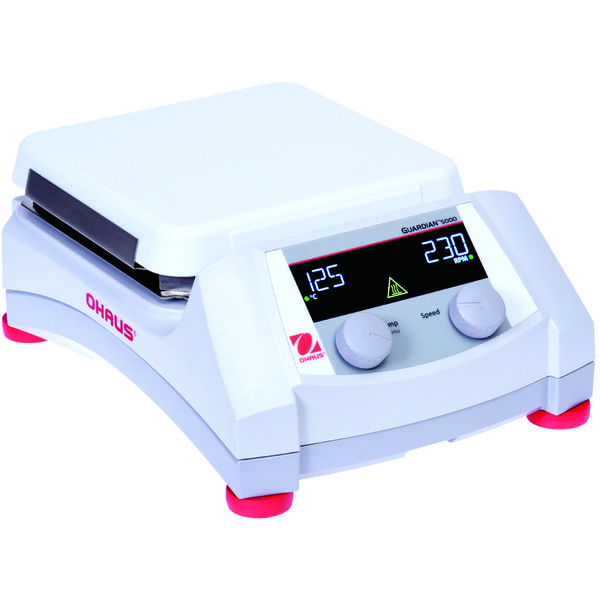

Guardian Magnetic Stirrer Hotplate, 15L, 7x7"

Brand: Ohaus

Function: Heating and Stirring

Capacity: 15 L

Plate Construction: Ceramic


Applications

Boiling Water, Water/Oil Bath Preparation, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples

Display

Backlit LCD Display for temperature and speed, green indicator lights when unit is heating and stirring, prominent hot top indicator light, probe in use icon, Single Point Calibration icon

Operation

Stirring from 60 to 1600 rpm, Temperature range of ambient +5°C to 500°C (ceramic top) or 380°C (aluminum top), power cord (included), stirring models include a 1.5” (3.8 cm) PTFE coated stir bar

Communication

N/A

Construction

Probe connection, SmartHousing™ stays cool to the touch and is chemical resistant, IP21 Ingress Protection, polycarbonate front panel, control knobs, On/Off switch for heater disconnect, built-in support rod holder, easy to clean ceramic or aluminum tops

Design Features

Hot top indicator light, audible alarm, SafetyHeat™ protection shuts off the heater in the event of a malfunction, temperature calibration feature for 3 probe and 3 plate setpoints

SKU: G51HS07C
POA

i h
OVERVIEW
OHAUS Guardian 5000™ Hotplates Stirrers are designed for safety and simplicity in all research, academic and industrial applications. The design ensures proper mixing and temperature control of the top plate or your sample when using the optional temperature probe. Heating models include a Single Point Calibration feature for multiple setpoints. Select from five models with three plate sizes for your everyday heating and stirring applications.

Applications
Boiling Water, Water/Oil Bath Preparation, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples
Display
Backlit LCD Display for temperature and speed, green indicator lights when unit is heating and stirring, prominent hot top indicator light, probe in use icon, Single Point Calibration icon
Operation
Stirring from 60 to 1600 rpm, Temperature range of ambient +5°C to 500°C (ceramic top) or 380°C (aluminum top), power cord (included), stirring models include a 1.5” (3.8 cm) PTFE coated stir bar
Communication
N/A
Construction
Probe connection, SmartHousing™ stays cool to the touch and is chemical resistant, IP21 Ingress Protection, polycarbonate front panel, control knobs, On/Off switch for heater disconnect, built-in support rod holder, easy to clean ceramic or aluminum tops
Design Features
Hot top indicator light, audible alarm, SafetyHeat™ protection shuts off the heater in the event of a malfunction, temperature calibration feature for 3 probe and 3 plate setpoints

SPECIFICATIONS
FunctionHeating and Stirring
Capacity15 L
Plate ConstructionCeramic
Plate Size7 in x 7 in (178 mm x 178 mm)
Temp. RangeAmbient +5°C – 500°C
Speed Range60 rpm ;  1,600 rpm
CalibrationTemperature Calibration 3 Plate/3 Probe
ControlDigital
Dimensions12.2 in x 4.8 in x 8.8 in (309 mm x 122 mm x 223 mm) (LxHxW)
DisplayCustom Back-lit LCD
In-Use CoverAvailable as an Accessory
Net Weight5.7 lb (2.6 kg)
Power230V, 6.0A, 50/60Hz
Power Consumption1,242 W
Safety CertificationTUV
Speed Range60 to 1600 rpm
Speed Stability+/-2%
Temperature ProbeAvailable as an Accessory
Temp. Stability+/-3% Plate, below 100°C +/-2°C and +/-1% Probe, below 100°C +/-1°C
Working Environment41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)
*
*
*
*
*
