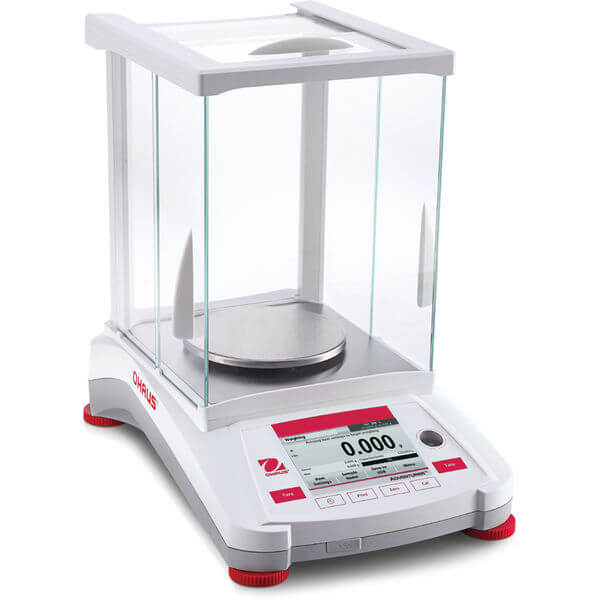

Laboratory Balance Adventurer Precision AX223/E - 220G X 1MG EXTERNAL CAL

Brand: Ohaus
SKU: AX223/E
POA

i h
Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold, Batch Printing
Display
4.3" (109 mm) Full-color VGA graphic touchscreen with user-controlled brightness
Operation
AC adapter (included)
Communication
RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.
Construction
Metal base, ABS top housing, stainless steel pan, glass draftshield with 2-piece top mounted side doors & sliding top door (1mg models only), illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, full housing in-use cover
Design Features
Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages

SPECIFICATIONS
Maximum Capacity220 g
Readability1 mg
Pan Size5.1 in (130 mm)
Internal CalibrationNot applicable
DraftshieldIncluded
Auto DoorNot applicable
Auxiliary Display ModelAvailable as an Accessory
Battery LifeNot applicable
CommunicationUSB;  RS232 (Included);  USB Host
Dimensions13.93 in x 13.39 in x 9.05 in (354 mm x 340 mm x 230 mm) (LxHxW)
DisplayHigh resolution full colour VGA touch display
In-Use CoverIncluded
Legal for TradeNot applicable
Linearity ±0.002 g
Minimum Weight (USP, 0.1%, typical)2 g
Net Weight12.8 lb (5.8 kg)
Pan ConstructionStainless Steel
PowerAC Adapter (Included)
Repeatability, typical1 mg
Stabilization Time2 s
Tare RangeTo capacity by subtraction
Units of MeasurementSingapore Tael;  Ounce Troy;  Pennyweight;  Grain;  Tical;  Custom;  Milligram;  Newton;  Momme;  Taiwan Tael;  Baht;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Carat;  Ounce
Working Environment50°F – 85°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing)
*
*
*
*
*
