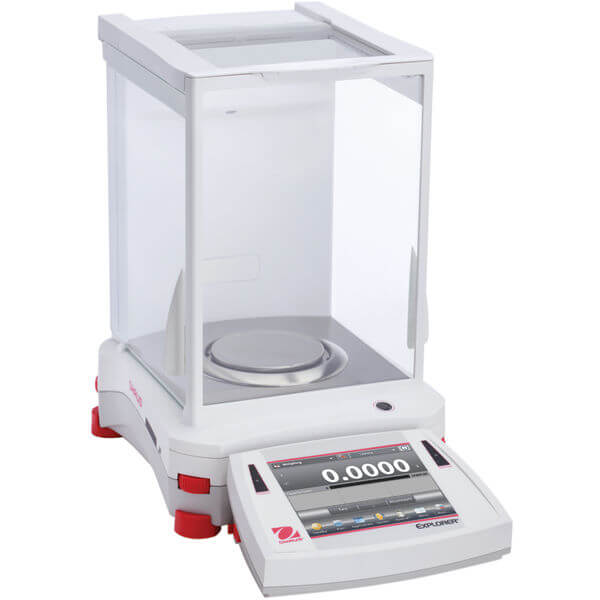

Laboratory Balance Explorer Analytical EX224/AD - 220G X 0.1MG AUTODOOR

Brand: Ohaus
SKU: EX224/AD
POA

i h
Applications
Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, Pipette Adjustment, SQC
Display
5.7" (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness
Operation
AC adapter (included)
Communication
RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock.
Construction
Metal base, ABS top housing, stainless steel pan, glass draftshield with top mounted side doors & flip/sliding top door, illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, 4 touchless sensors, in-use cover
Design Features
Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating languages

SPECIFICATIONS
Maximum Capacity220 g
Readability0.1 mg
Pan Size3.5 in (90 mm)
Internal CalibrationAutoCal™ - Automatic
DraftshieldIncluded
Auto DoorIncluded
Auxiliary Display ModelAvailable as an Accessory
Battery LifeNot applicable
CommunicationEthernet (Available as an Accessory);  USB (Included);  RS232 (Included)
Dimensions15.5 in x 13.8 in x 9.1 in (393 mm x 350 mm x 230 mm) (LxHxW)
DisplayFull-color 5.7 in VGA, touch screen
In-Use CoverIncluded
Legal for TradeNot applicable
Linearity ±0.0002 g
Minimum Weight (USP, 0.1%, typical)0.16 g
Net Weight15.2 lb (6.9 kg)
Pan ConstructionStainless Steel
PowerAC Adapter (Included)
Repeatability, typical0.0001 g
Stabilization Time2 s
Tare RangeTo capacity by subtraction
Units of MeasurementSingapore Tael;  Ounce Troy;  Pennyweight;  Grain;  Kilogram;  Tical;  Custom;  Milligram;  Momme;  Newton;  Baht;  Taiwan Tael;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Carat;  Ounce
Working Environment50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
*
*
*
*
*
