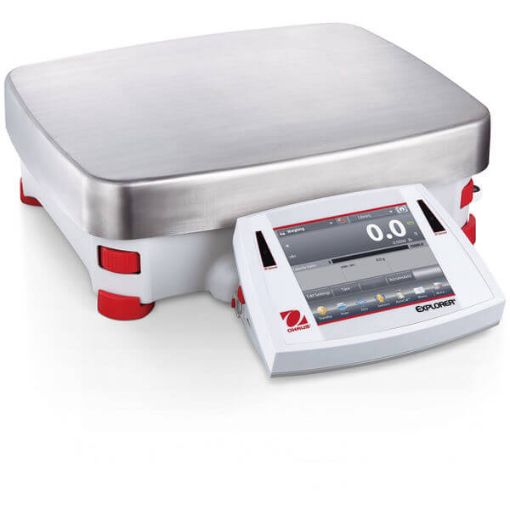

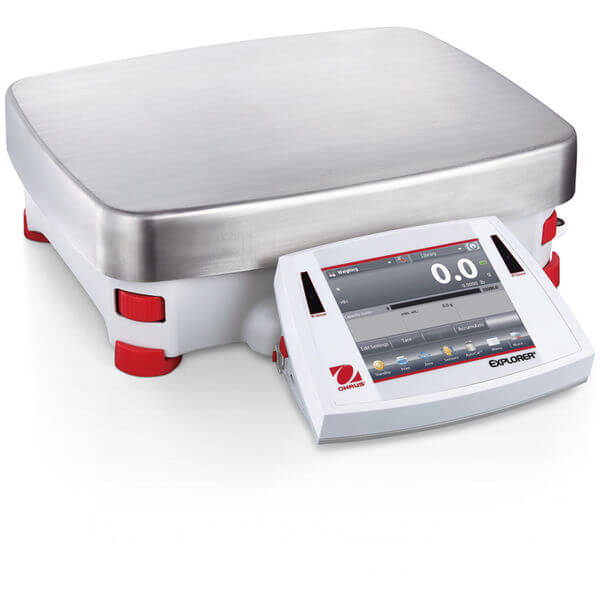

    Laboratory Balance Explorer High Capacity EX24001 - 24000G X 0.1G

    Brand: Ohaus
    SKU: EX24001
    POA

    i h
    Applications
    Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, SQC, Statistics
    Display
    5.7" (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness
    Operation
    AC Adapter (included) or rechargeable battery (accessory sold separately)
    Communication
    RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock.
    Construction
    Modular design, IP54 metal base, Die-cast top housing, stainless steel pan, up-front level indicator, integral weigh below hook, calibration lock, two touchless sensors, full housing in-use cover
    Design Features
    Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating lan

    SPECIFICATIONS
    Maximum Capacity24,000 g
    Readability0.1 g
    Pan Size14.8 in x 12.2 in (377 mm x 311 mm)
    Internal CalibrationAutoCal™ - Automatic
    Draftshield
    Auxiliary Display ModelAvailable as an Accessory
    Battery Life10 Hours with Rechargeable Battery
    CommunicationEthernet (Available as an Accessory);  USB (Included);  RS232 (Included)
    Dimensions17.44 in x 4.7 in x 14.9 in (443 mm x 120 mm x 377 mm) (LxHxW)
    DisplayFull-color 5.7 in VGA, touch screen
    In-Use CoverIncluded
    Legal for TradeNot applicable
    Linearity ±0.2 g
    Minimum Weight (USP, 0.1%, typical)210 g
    Net Weight22 lb (10 kg)
    Pan ConstructionStainless Steel
    PowerRechargeable Battery (Not Included);  AC Power (Included)
    Repeatability, typical0.1 g
    Stabilization Time1 s
    Tare RangeTo capacity by subtraction
    Units of MeasurementSingapore Tael;  Ounce Troy;  Pennyweight;  Kilogram;  Grain;  Tical;  Custom;  Milligram;  Newton;  Momme;  Taiwan Tael;  Baht;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Carat;  Ounce
    Working Environment50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
    *
    *
    *
    *
    *
