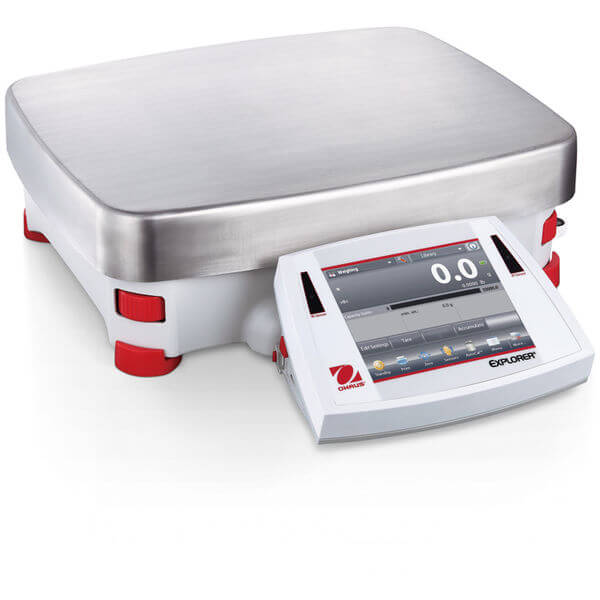

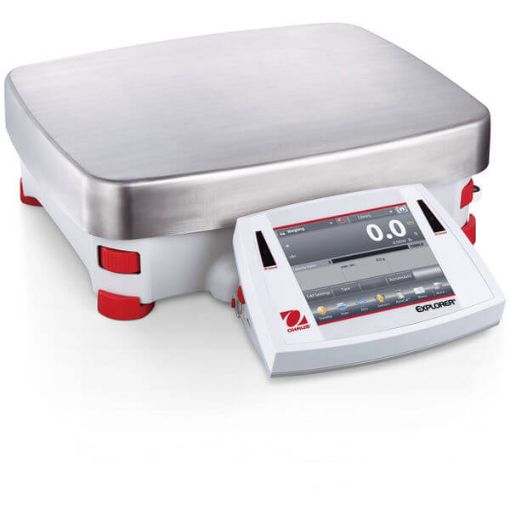

Laboratory Balance Explorer High Capacity EX35001 - 35000G X 0.1G

Brand: Ohaus
SKU: EX35001
POA

i h
Applications
Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, SQC, Statistics
Display
5.7" (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness
Operation
AC Adapter (included) or rechargeable battery (accessory sold separately)
Communication
RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock.
Construction
Modular design, IP54 metal base, Die-cast top housing, stainless steel pan, up-front level indicator, integral weigh below hook, calibration lock, two touchless sensors, full housing in-use cover
Design Features
Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating lan

SPECIFICATIONS
Maximum Capacity35,000 g
Readability0.1 g
Pan Size14.8 in x 12.2 in (377 mm x 311 mm)
Internal CalibrationAutoCal™ - Automatic
Draftshield
Auxiliary Display ModelAvailable as an Accessory
Battery Life10 Hours with Rechargeable Battery
CommunicationEthernet (Available as an Accessory);  USB (Included);  RS232 (Included)
Dimensions17.44 in x 4.7 in x 14.9 in (443 mm x 120 mm x 377 mm) (LxHxW)
DisplayFull-color 5.7 in VGA, touch screen
In-Use CoverIncluded
Legal for TradeNot applicable
Linearity ±0.2 g
Minimum Weight (USP, 0.1%, typical)210 g
Net Weight22 lb (10 kg)
Pan ConstructionStainless Steel
PowerRechargeable Battery (Not Included);  AC Power (Included)
Repeatability, typical0.1 g
Stabilization Time1 s
Tare RangeTo capacity by subtraction
Units of MeasurementSingapore Tael;  Ounce Troy;  Pennyweight;  Kilogram;  Grain;  Tical;  Custom;  Milligram;  Newton;  Momme;  Taiwan Tael;  Baht;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Carat;  Ounce
Working Environment50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
*
*
*
*
*
