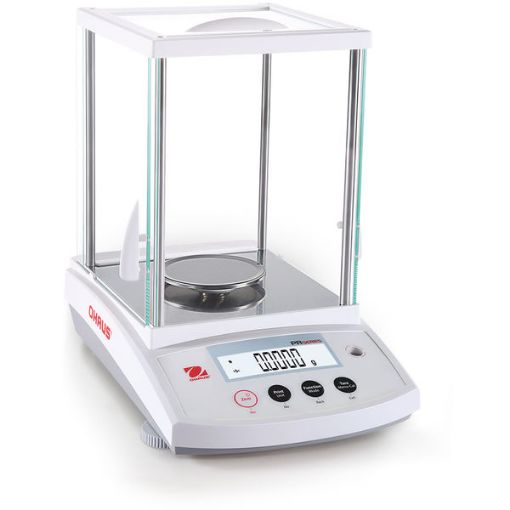

Image is only for illustration purposes, refer to description for more information

Analytical Balance PR Series 220g x 0.1mg, internal calibration, pan size 90mm diameter

Brand: Ohaus
SKU: PR224
POA

i h
Product Files
Applications
Basic Weighing, Parts Counting, Percent Weighing
Display
Backlit Liquid Crystal Display (LCD)
Operation
AC adapter (included)
Communication
RS232 (one port included)
Construction
ABS top housing, removable stainless steel pan, removable glass draftshield with sliding top door, integrated weigh-below-hook, security bracket, calibration lock
Design Features
User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator

SPECIFICATIONS
Maximum Capacity220 g
Readability0.1 mg
Pan Size3.5 in (90 mm)
Internal CalibrationInCal™ - Semi Automatic
DraftshieldIncluded
Auto DoorNot applicable
Auxiliary Display ModelAvailable as an Accessory
Battery LifeNot applicable
Built-in IonizerNo
CommunicationRS232
Dimensions12.5 in x 11.9 in x 7.9 in (317 mm x 303 mm x 201 mm) (LxHxW)
DisplayLCD with backlight
In-Use CoverNo
Legal for TradeNo
Linearity ±0.0002 g
Minimum Weight (USP, 0.1%, typical)200 mg
Net Weight10 lb (4.5 kg)
Pan ConstructionStainless Steel
PowerAC Adapter (Included)
Repeatability, typical0.0001 g
Stabilization Time3 s
Tare RangeTo capacity by subtraction
Units of MeasurementMilligram;  Pennyweight;  Ounce Troy;  Newton;  Taiwan Tael;  Gram;  Grain;  Ounce;  Carat;  Custom
Working Environmentoperability guaranteed between 41°F and 104°F;  50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C;  10°C – 30°C, 80%RH, non-condensing)
*
*
*
*
*
