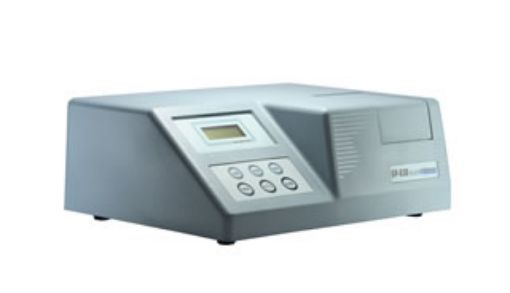

Metertech Visible Spectrophotometer main unit (Wavelength range:320-1100 nm)

Brand: Metertech
The SP-800 series single beam visible spectrophotometers are an affordable, easy-to use, and reliable general purpose instrument designed for laboratories and educational needs. The SP-800 series visible beam spectrophotometer comes with 2 models. The SP-830+ standalone model measures the traditional absorbance, transmittance and concentration. And the PC enabled SP-880 with enhance measurement features such as spectrum scan, time scan, kinetic, and quantitative. Both models also come with a versatile sample compartment to hold cuvettes, and tubes, of all sizes. The SP-800 series visible spectrophotometers are a compact, low-cost instrument with all the essentials for teaching and routine laboratory use.
SKU: SP-870+
POA

i h
Product Files
Model NumberSP-830+
Optical DesignSingle Beam
Light SourceHalogen Lamp
DetectorSilicon photodiode
Bandwidth5nm
Wavelength Range330~1100nm
Wavelength Accuracy+/-1nm
Wavelength Repeatability+/-0.35nm
Scanning Speed4500nm/min
Photometric Range
-0.300~3.500A
0.3~150 %T
 0.02~34996 C
Measurement Mode
Absorbance
Transmittance (%T)
 Concentration
Photometric Accuracy1.0% or 0.003A(from 0.000 to 2.500A),whichever is greater
Stability<0.003A/hr at 500nm after one hour warm-up
Stray Light<0.1% at 340nm
Display10 x2 large character LCD
Sample Holder
10 mm square cuvette
10~13 mm round tube
 50 mm rectangulare cell
InterfaceParallel port
Dimension400(W) x 300(D) x 145(H) mm
Weight7.5Kg
*
*
*
*
*
