Image is only for illustration purposes, refer to description for more information

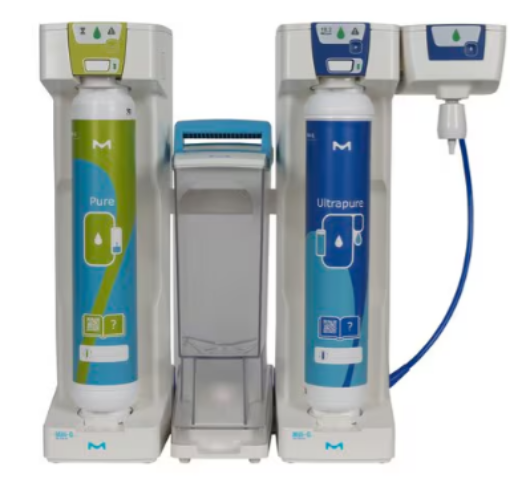

Milli-Q SQ 240CV Purification System Kit, Combined preset volume configuration

Brand: Millipore
SKU: ZSQ240UCVTK
POA

i h

Properties

AC/DC input

100 V / 240 V AC, 50-60 Hz

Manufacturer/tradename

Milli-Q®

Greener alternative product characteristics

Design for Energy Efficiency

Sustainability

Greener Alternative Product

Parameters

≤1.6 L/min distribution flow rate (Ultrapure water from Preset Volume Dispenser)
≤42 L/hr make-up flow rate (Pure RO water)
≤6 L/min distribution flow rate (Pure RO water from SQ Gravity valve)
10 L/day max. usage
12 kg operating weight (26.5 lb) (dispensing module with SQ Switch 3.5 L tank)
17 kg operating weight (37.5 lb) (production station with SQ Switch 3.5 L tank)

Resistivity

18.2 MΩ-cm, 25 degrees

System Height

50.3 cm (19.8 in.)

System Width

40.9 cm (16.1 in.)
52.6 cm (20.7 in.) , including preset volume dispenser

System Depth

22 cm (8.7 in.)

Impurities

Microbes: < 10 cfu/L (typically < 1 cfu/L) with SQPAK™ Final or Bio Final filters
Particulates: < 1 unit/mL (particulates > 0.22 µm with SQPAK™ Final or Bio Final filters
Pyrogens: < 0.001 EU/mL with SQPAK™ Bio Final filter

Total organic carbon (TOC) residue

≤5 ppb

Input

feed water nature potable tap water (Lab feed water connection must be a 1/2" Male thread NPT/BSP/GAZ)

Output

product water quality: type 1 water (18.2 MΩ·cm)
product water quality: type 3 water (RO water)

Conductivity

0.055 μS/cm

Greener alternative category

DfS-Developed




Description

General description
The Milli-Q® SQ 240CV water purification system delivers both pure reverse osmosis (RO) water and ultrapure (Type 1) water. A fixed preset volume dispenser records and repeats the dispense volume of ultrapure water. It comes equipped with a Gravity valve to dispense RO water directly from the SQ Switch 3.5 L tank base. The Milli-Q® SQ 240CV water purification system is 1 of 6 preset configurations available for the Milli-Q® SQ 2Series family, which provides full autonomy to users and is adaptable to lab requirements and evolutions. We are committed to bringing you Greener Alternative Products, which belongs to one of the four categories of greener alternatives . This product is a Design for Sustainability (DfS) developed product.

Features and Benefits

  • Simple, manual handset dispenser allows any new or untrained user to deliver ultrapure water at variable flow rates, from up to 1.6 L/min to drop by drop
  • Reliable 18.2 MΩ·cm resistivity ultrapure (Type 1) water quality is indicated at a glance by a colored LED
  • TOC is reduced by an integrated photo-oxidation UV lamp
  • Freshly dispensed ultrapure water is available from the combined Milli-Q® SQ 200 ultrapure dispensing module; When completed with additional autonomous dispensing modules, ultrapure water is available anywhere, in or out of the lab, thanks to the mobile SQ Switch tank
  • Fast (as little as 6 min) refilling of the mobile SQ Switch tank with freshly produced pure RO water thanks to the high-flow RO cartridge (up to 42 L/h) of the pure water production station; RO water recovery loop saves 50% of the rejected water; automatic RO membrane rinsing maintains its high performance
  • Compact setup and self-guided installation manual and videos let you plug the system wherever is convenient for your lab activity and move it later if needed
  • Individual Twist & Lock cartridge replacement simplifies maintenance and limits running cost
  • Compact size plus water and energy savings support lab sustainability efforts.

*
*
*
*
*
