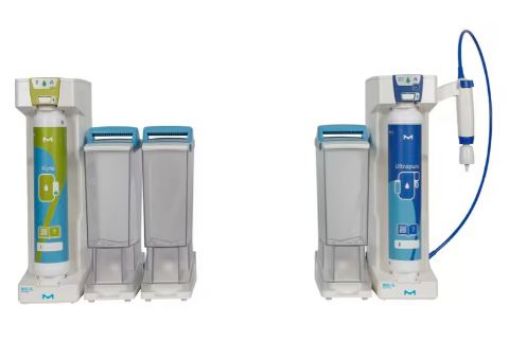

Image is only for illustration purposes, refer to description for more information

Milli-Q SQ 240L Purification System Kit, Dual tank configuration, includes 3 switch tanks

Brand: Millipore
SKU: ZSQ240RLTK
POA

i h

Description

General description
The Milli-Q® SQ 240L Purification System Kit is composed of the Milli-Q® SR 240L and the Milli-Q® SQ 200 water purification systems. The Milli-Q® SR 240L water purification system delivers pure reverse osmosis (RO) water to two mobile SQ Switch 3.5 L tanks. It comes equipped with a Gravity valve to dispense RO water directly from the SQ Switch tank base. The Milli-Q® SQ 200 water purification system delivers ultrapure (Type 1) water from the SQ Switch 3.5 L tank filled with pure RO water. A flexible handset dispenser delivers the ultrapure water. The Milli-Q® SQ 240L Purification System Kit is 1 of 6 preset configurations available for the Milli-Q® SQ 2Series family. This configuration allows for a larger storage volume of RO water and for faster production of Ultrapure water. The kit provides full autonomy to users and is adaptable to lab requirements and evolutions. This product is a Design for Sustainability (DfS) developed product.

Features and Benefits

  • Simple, manual handset dispenser allows any new or untrained user to deliver ultrapure water at variable flow rates, from up to 1.6 L/min to drop by drop
  • Reliable 18.2 MΩ·cm resistivity ultrapure (Type 1) water quality is indicated at a glance by a colored LED
  • TOC is reduced by an integrated photo-oxidation UV lamp
  • Freshly dispensed ultrapure water is available anywhere, in or out of the lab, from the autonomous Milli-Q® SQ 200 ultrapure dispensing module thanks to the mobile SQ Switch tank
  • Fast (as little as 6 min) refilling of the mobile SQ Switch tank with freshly produced pure RO water thanks to the high-flow RO cartridge (up to 42 L/h) of the pure water production station; RO water recovery loop saves 50% of the rejected water; automatic RO membrane rinsing maintains its high performance
  • Compact setup and self-guided installation manual and videos let you plug the system wherever is convenient for your lab activity and move it later if needed
  • Unlimited scalability with one pure RO water production station able to feed multiple autonomous Milli-Q® SQ 200 ultrapure dispensing modules (just plug in an electrical outlet); Supports lab activity expansion while limiting budget investment
  • Individual Twist & Lock cartridge replacement simplifies maintenance and limits running cost
  • Compact size plus water and energy savings support lab sustainability efforts

Properties

AC/DC input

100 V / 240 V AC, 50-60 Hz

Manufacturer/tradename

Milli-Q®

Greener alternative product characteristics

Design for Energy Efficiency

Sustainability

Greener Alternative Product

Parameters

≤1.6 L/min distribution flow rate (Ultrapure water from Handset Dispenser)
≤42 L/hr make-up flow rate (Pure RO water)
≤6 L/min distribution flow rate (Pure RO water from SQ Gravity valve)
12 kg operating weight (26.5 lb) (dispensing module with SQ Switch 3.5 L tank)
16 kg operating weight (35.3 lb) (production station with two SQ Switch 3.5 L tank)
17 kg operating weight (37.5 lb)
60 L/day max. usage

Resistivity

18.2 MΩ-cm, 25 degrees

System Height

50.3 cm (19.8 in.)
62.9 cm (24.8 in.) , with Handset Dispenser tubing

System Width

26.7 cm (10.5 in.) , dispensing station
38.4 cm (15.1 in.) , dsipensing module including Handset Dispenser
39.2 cm (15.4 in.) , production station

System Depth

22 cm (8.7 in.)

Impurities

Microbes: < 10 cfu/L (typically < 1 cfu/L) with SQPAK™ Final or Bio Final filters
Particulates: < 1 unit/mL (particulates > 0.22 µm with SQPAK™ Final or Bio Final filters
Pyrogens: < 0.001 EU/mL with SQPAK™ Bio Final filter

Total organic carbon (TOC) residue

≤5 ppb

Input

feed water nature potable tap water (Lab feed water connection must be a 1/2" Male thread NPT/BSP/GAZ)

Output

product water quality: type 1 water (18.2 MΩ·cm)
product water quality: type 3 water (RO water)

Conductivity

0.055 μS/cm

Greener alternative category

DfS-Developed


*
*
*
*
*
