  • Milli-Q SQ 240XL Purification System Kit with 50L RO tank, includes 2 switch tanks

Milli-Q SQ 240XL Purification System Kit with 50L RO tank, includes 2 switch tanks

Brand: Millipore
SKU: ZSQ240RXTK
POA

i h

Description

General description

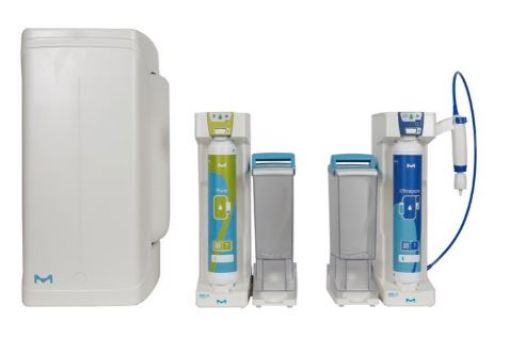

The Milli-Q® SQ 240XL Purification System Kit is composed of the Milli-Q® SR 240XL and the Milli-Q® SQ 200 water purification systems. The Milli-Q® SR 240XL water purification system delivers pure reverse osmosis (RO) water to one mobile SQ Switch 3.5 L tank and one SQ 50 L tank. The SQ 50 L tank benefits from a high-flow valve to directly feed lab equipment with pure RO water. An SQ Gravity valve is also provided to dispense RO water at the bench from either the 50 L or 3.5 L tank. The Milli-Q® SQ 200 water purification system delivers ultrapure (Type 1) water from the SQ Switch 3.5 L tank filled with pure RO water. A flexible handset dispenser delivers the ultrapure water. The Milli-Q® SQ 240XL Purification System Kit is 1 of 6 preset configurations available for the Milli-Q® SQ 2Series family. This configuration is useful to labs looking for a high volume of RO water. The kit provides full autonomy to users and is adaptable to lab requirements and evolutions. This product is a Design for Sustainability (DfS) developed product.

Features and Benefits

  • Simple, manual handset dispenser allows any new or untrained user to deliver ultrapure water at variable flow rates, from up to 1.6 L/min to drop by drop
  • Reliable 18.2 MΩ·cm resistivity ultrapure (Type 1) water quality is indicated at a glance by a colored LED
  • TOC is reduced by an integrated photo-oxidation UV lamp
  • Freshly dispensed ultrapure water is available anywhere, in or out of the lab, from the autonomous Milli-Q® SQ 200 ultrapure dispensing module thanks to the mobile SQ Switch tank
  • Fast (as little as 6 min) refilling of the mobile SQ Switch tank with freshly produced pure RO water thanks to the high-flow RO cartridge (up to 42 L/h) of the pure water production station; RO water recovery loop saves 50% of the rejected water; automatic RO membrane rinsing maintains its high performance
  • Compact setup and self-guided installation manual and videos let you plug the system wherever is convenient for your lab activity and move it later if needed
  • Unlimited scalability with one pure RO water production station able to feed multiple autonomous Milli-Q® SQ 200 ultrapure dispensing modules (just plug in an electrical outlet); Supports lab activity expansion while limiting budget investment
  • Individual Twist & Lock cartridge replacement simplifies maintenance and limits running cost
  • Compact size plus water and energy savings support lab sustainability efforts.


Properties

AC/DC input

100 V / 240 V AC, 50-60 Hz

Manufacturer/tradename

Milli-Q®

Greener alternative product characteristics

Design for Energy Efficiency

Sustainability

Greener Alternative Product

Parameters

≤1.6 L/min distribution flow rate (Ultrapure water from Handset Dispenser)
≤12 L/min distribution flow rate (Pure RO water from high flow SQ 50 L tank valve)
≤42 L/hr make-up flow rate (Pure RO water)
≤6 L/min distribution flow rate (Pure RO water from SQ Gravity valve)
10 kg operating weight (22 lb) (production station with two SQ Switch 3.5 L tank)
100 L/day max. usage
12 kg operating weight (26.5 lb) (dispensing module with SQ Switch 3.5 L tank)
21 kg operating weight (46.3 lb)
57 kg operating weight (126 lb) (for the SQ 50L tank)

Resistivity

18.2 MΩ-cm, 25 degrees

System Height

50.3 cm (19.8 in.)
62.9 cm (24.8 in.) , with Handset Dispenser tubing
70.6 cm (27.8 in.) , for the 50 L tank

System Width

26.7 cm (10.5 in.) , dispensing station
26.7 cm (10.5 in.) , production station without 50L tank
38.4 cm (15.1 in.) , dsipensing module including Handset Dispenser
40 cm (15.7 in.) , for 50L tank

System Depth

22 cm (8.7 in.)

Impurities

Microbes: < 10 cfu/L (typically < 1 cfu/L) with SQPAK™ Final or Bio Final filters
Particulates: < 1 unit/mL (particulates > 0.22 µm with SQPAK™ Final or Bio Final filters
Pyrogens: < 0.001 EU/mL with SQPAK™ Bio Final filter

Total organic carbon (TOC) residue

≤5 ppb

Input

feed water nature potable tap water (Lab feed water connection must be a 1/2" Male thread NPT/BSP/GAZ)

Output

product water quality: type 3 water (RO water)
product water quality: type 1 water (18.2 MΩ·cm)

Conductivity

0.055 μS/cm

Greener alternative category

DfS-Developed

*
*
*
*
*
