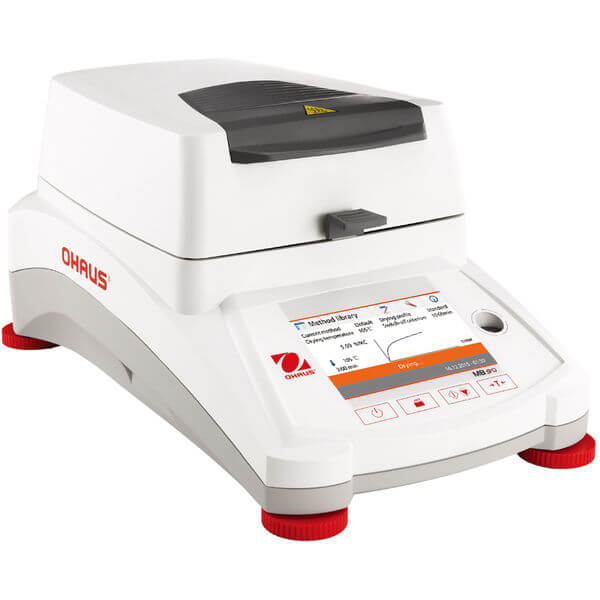

Moisture Analyser MB90 - 90G X 0.001G

Brand: Ohaus
SKU: MB90
POA

i h
Product Files
Applications
Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
Display
4.3" TFT color touchscreen display
Operation
Power cord (included)
Communication
RS232 with GLP/GMP data output, USB Host and USB Device (included)
Construction
Metal base, ABS top housing, halogen heat source, stainless steel pan support, stainless steel pan handler, in-use cover
Design Features
Three shut-off criteria (manual, timed or auto), two drying profiles (standard and fast), storage up to two methods, user guide, 40°C to 200°C heating temperature range (1°C increments), 14 operational languages

SPECIFICATIONS
Maximum Capacity90 g
Readability Moisture Content1 mg/0.01%
Pan Size90 mm
Heater TypeHalogen Lamp
CommunicationUSB device;  USB host x 2;  RS232
Dimensions13.98 in x 7.09 in x 8.31 in (355 mm x 180 mm x 211 mm) (LxHxW)
DisplayFull-Color 4.3 in Touchscreen WQVGA
Heating ProfilesStandard;  Fast
In-Use CoverIncluded
Moisture Range0 % ;  100 %
Net Weight11.53 lb (5.23 kg)
Operating Range (Temp.)10 °C ;  40 °C
Power230V
Sample Size0.5 g ;  90 g
Shut-Off CriteriaAuto;  Timed;  Manual
Temperature Range40 °C ;  200 °C
Test Library2
Units of Measurement%DC;  Gram;  %RG;  %MC
Working Environment50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85% RH, non-condensing)
*
*
*
*
*
