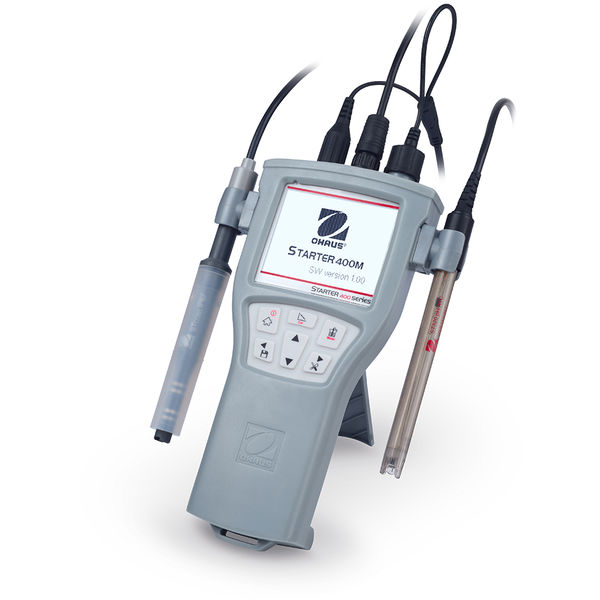

Multi-Parameter Portable Meter Starter 400M ST400M-G PH & EC Kit with electrodes ST320 & STCON3

Brand: Ohaus
SKU: ST400M-G
POA

i h
Product Files
Applications
pH, Conductivity, TDS, Salinity and Resistivity Testing
Display
Backlit Liquid Crystal Display (LCD)
Operation
Rechargeable lithium battery
Communication
Built-in micro-USB port
Construction
IP67 waterproof plastic housing, IP67 probes, rubber cover
Design Features
Data storage of up to 1000 items

SPECIFICATIONS
Measurement Range0-20 MΩ•cm;  -5 °C – 110 °C;  -2.00 – 16.00 pH;  00.0 μS/cm – 199.9 mS/cm;  0.1 mg/L – 199.9 g/L (TDS);  -1999 – 1999 mV;  0-99.9 psu
Accuracy± 0.5 % F.S.;  ±0.3 °C;  ±1 mV;  ±0.01 pH
Measurement Resolution0.01 mg/L;  0.01 psu;  0.1 °C;  0.1 μs/cm;  0.01 pH;  0.01 Ω•cm;  1 mV
DisplayLCD Backlit Display
ElectrodeST320 IP67 3m (Included);  STCON3 IP67 3m (Included)
Accuracy ± (mV)1 mV
Accuracy ± (Temperature)0.3 °C
Battery Life40 Hours with Rechargeable Battery
Conductivity accuracy (±)0.5 %
Conductivity measuring range0.01 μS/cm-199.9 mS/cm
Dimensions9.05 in x 1.57 in x 3.94 in (230 mm x 40 mm x 100 mm) (LxHxW)
Measurement Range (Temperature)-5 °C ;  110 °C
Measurement Range-1,999 mV ;  1,999 mV
Net Weight0.77 lb (0.35 kg)
pH accuracy (±)0.01
pH measuring range-2 ;  16
pH resolution0.01
Resistivity measuring range0 MOhm ;  20 MOhm
Resistivity resolution0.01 MOhm
Resolution Cond. (Variable)0.1 ;  199.9
Resolution (Voltage)1 mV
Temperature compensationAutomatic
Temperature resolution0.1 °C
Temperature Sensor30 KΩ NTC
Working Environment41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)
*
*
*
*
*
