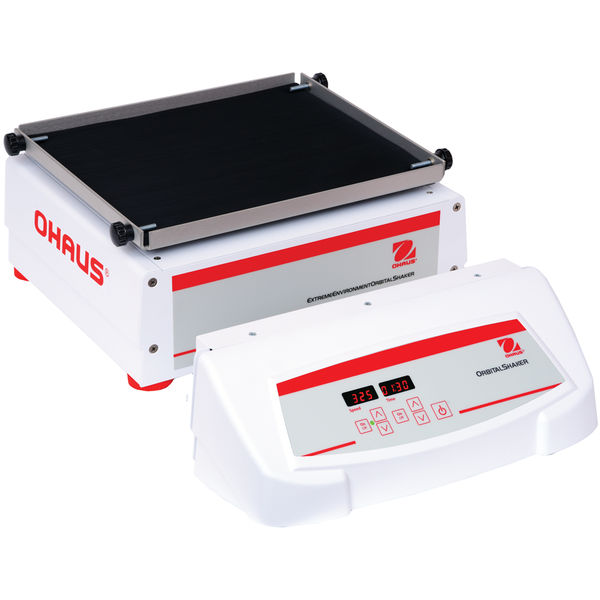

Open Air Shaker EXTREME - SHEX1619DGAU

Brand: Ohaus
SKU: SHEX1619DGAU
POA

i h
Applications
Cell Cultures, Solubility Studies, Extraction Procedures, Bacteria & Yeast Cultures and Suspensions, Staining/Destaining, Immunoassays, Protein Studies, Blotting Techniques
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously
Operation
Detachable 3-wire cord and plug (included)
Communication
RS232 interface provides two-way communication for data logging and unit control (digital models)
Construction
Cold rolled steel (CRS) and stainless steel, external control module, thin ribbon cable (5.5 feet or 1.7 m) easily passes underneath an incubator door or via incubator’s utility port
Design Features
Built-in tray (11x13 inch or 28x33 cm) with a non-slip rubber mat (included)

SPECIFICATIONS
MotionOrbital, 19 mm
Capacity16 kg
Speed Range15 rpm – 500 rpm
Tray Size13 in x 13 in (33 cm x 33 cm)
ControlDigital
Drive SystemTriple Eccentric;  Brushless DC Motor
CalibrationSpeed calibration
CommunicationRS232 (Included)
Dimensions17.3 in x 5.8 in x 13.9 in (43.9 cm x 14.7 cm x 35.3 cm) (LxHxW)
Net Weight48.1 lb (21.8 kg)
Orbit0.8 in (19 mm)
Power230V, 0.3A, 50/60Hz
Power Consumption30 W
Safety CertificationCE;  TUV
Speed Accuracy±1 rpm, Above 100 rpm ±1% of set speed
Speed Range15 rpm – 500 rpm
Timer1 second – 160 hours
Tray ConstructionAluminum
Working Environment14°F – 140°F, 100%RH (-10°C – 60°C, 100%RH)
*
*
*
*
*
