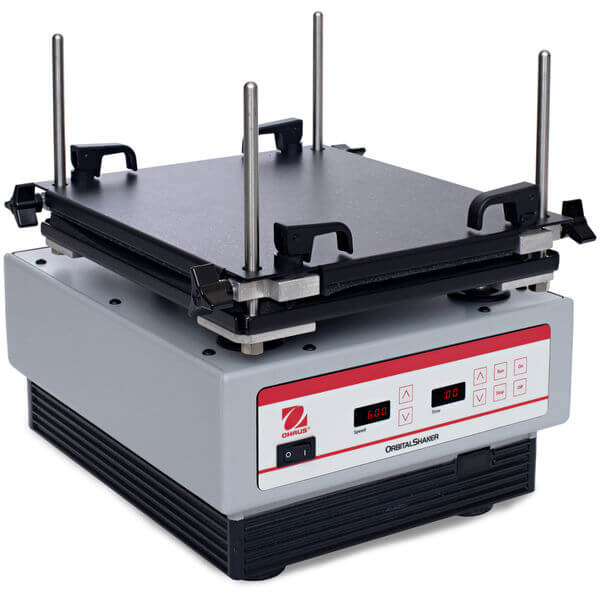

Open Air Shaker Orbital SHHSMPDGAU

Brand: Ohaus
SKU: SHHSMPDGAU
POA

i h
Product Files
Applications
Cell Lysing, Emulsifications, Mixing Microplates
Display
Independent LED displays for speed and time
Operation
N/A
Communication
RS-232
Construction
Die Cast Aluminum
Design Features
Programmable pulse feature with adjustments for pulse ON and pulse OFF intervals of between 1 and 59 seconds. Program timer to count down from set time and turn off when timer reaches zero, or to run in continuous mode as timer counts accumulated time until user turns it off.
SPECIFICATIONS
MotionOrbital, 3.6 mm
Capacity48 microplates
Speed Range600 rpm ;  2,500 rpm
Tray Size12.25 in x 11 in (311 mm x 279 mm) (LxW)
Timer1 second – 160 hours
ControlDigital
Tray ConstructionAluminum
Dimensions15.5 in x 12.8 in x 12 in (394 mm x 325 mm x 305 mm) (LxHxW)
Power Consumption120 W
Working Environment39 - 104°F, 20% to 80% RH, non-condensing (4 - 40°C, 20% to 80% RH, non-condensing)
Speed Range600 rpm - 2500 rpm
Net Weight48.1 lb (21.8 kg)
Safety CertificationcULus
Power230V, 1A, 50/60Hz
CommunicationRS232
*
*
*
*
*
