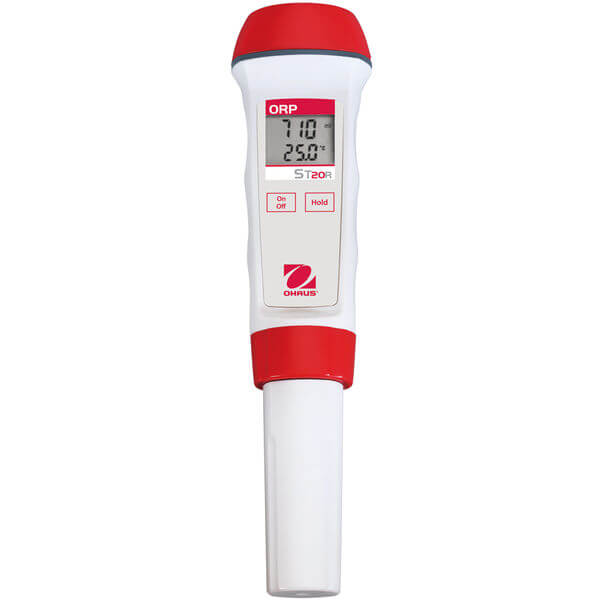

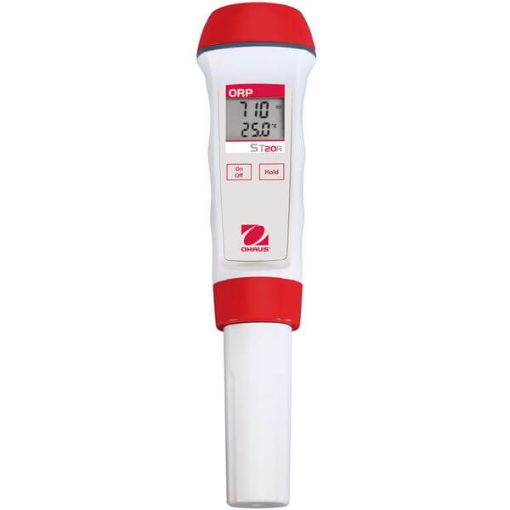

ORP Portable Meter ST20R PEN METER

Brand: Ohaus
SKU: ST20R
POA

i h
Product Files
Applications
pH, oxidation-reduction potential (ORP), conductivity, dissolved oxygen (DO), salinity, total dissolved solids (TDS), temperature measurement
Display
Liquid crystal display (LCD) display with secondary information line (on select models)
Operation
4 1.5V batteries (included)
Communication
N/A
Construction
ABS Housing
Design Features
Easily replaceable electrodes, automatic shut off feature

SPECIFICATIONS
Measurement Range-1000 – 1000 mV;  0.0 – 99.0 °C
Measurement Resolution1 mV
CalibrationNA
DisplayLCD
Working Environment50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85% RH, non-condensing)
Net Weight3.88 oz (110 g)
Meter TypeORP
ATCYes
Temperature DisplayYes
Dimensions1.5 in x 7.28 in x 1.77 in (38 mm x 185 mm x 45 mm) (LxHxW)
Battery Life200 Hours with Disposable Batteries
Protection RatingIP67
Power4 AG13 Batteries (Included)
Wrist StrapYes
Number of Buttons2
Automatic ShutdownYes, After 6 minutes of non-use
Temperature Sensor50 KΩ NTC
Accuracy± 2 mV / ± 0.5 °C
*
*
*
*
*
