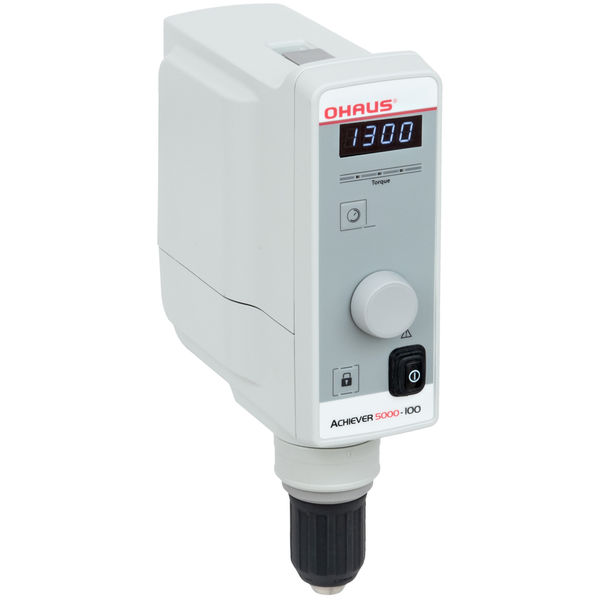

Overhead Stirrer Achiever 5000, max Torque 100Ncm E-A51ST100

Brand: Ohaus
SKU: E-A51ST100
POA

i h
Applications
Stirring, dissolving, dispersion, emulsification and homogenization for the following the industries: food and beverage, cosmetics, paint/coatings, pharmaceutical, chemical, glue/adhesive, plastics/polymer and cement/construction. Used for pilot scale in manufacturing.
Display
Bright LED digital display for speed, real-time torque tendency LED indicator bar, and integrated timer
Operation
Stirring from 6 rpm to 2000 rpm with speed accuracy of 1 rpm and maximum torque from 20 Ncm to 200 Ncm, depending on model. Stable torque at any speed, and volume capacity ranging from 25L to 100L
Communication
NA
Construction
Sealed aluminum housing with IP54 ingress protection rating. Keyless Chuck for simple, one-hand operation, and brushless motor for quiet operation and main power switch
Design Features
Compact design for easy handling, simple knob control, lock button to prevent unintentional setting changes, and full protection for overload, overtemperature and overcurrent conditions

SPECIFICATIONS
Speed Range30 rpm – 1300 rpm
Capacity100 L
Sample Viscosity (mPa s)maximum 70,000
Torque (max)100 Ncm
Chuck Range (Diameter)1-13 mm
Shaft Pass-Through (Diameter)up to 8.5 mm
ControlDigital
Dimensions9.3 in x 11.2 in x 3.5 in (235 mm x 285 mm x 90 mm) (LxHxW)
DisplayLED Display
FunctionStirring
IP ratingIP 54
Net Weight9 lb (4.1 kg)
Power115 / 230 VAC
Power Consumption190 W
Safety CertificationcNemkous
Speed Accuracy±1 rpm
Speed Range30 rpm ;  1,300 rpm
Timer1 minute – 99 hours, 59 minutes
Working Environment41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)
*
*
*
*
*
