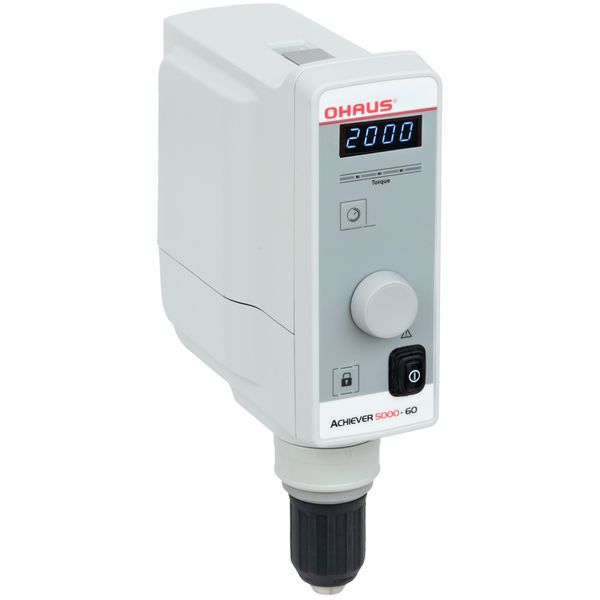

Overhead Stirrer Achiever 5000, max Torque 60Ncm E-A51ST060

Brand: Ohaus
SKU: E-A51ST060
POA

i h
Applications
Stirring, dissolving, dispersion, emulsification and homogenization for the following the industries: food and beverage, cosmetics, paint/coatings, pharmaceutical, chemical, glue/adhesive, plastics/polymer and cement/construction. Used for pilot scale in manufacturing.
Display
Bright LED digital display for speed, real-time torque tendency LED indicator bar, and integrated timer
Operation
Stirring from 6 rpm to 2000 rpm with speed accuracy of 1 rpm and maximum torque from 20 Ncm to 200 Ncm, depending on model. Stable torque at any speed, and volume capacity ranging from 25L to 100L
Communication
NA
Construction
Sealed aluminum housing with IP54 ingress protection rating. Keyless Chuck for simple, one-hand operation, and brushless motor for quiet operation and main power switch
Design Features
Compact design for easy handling, simple knob control, lock button to prevent unintentional setting changes, and full protection for overload, overtemperature and overcurrent conditions

SPECIFICATIONS
Speed Range30 rpm – 2000 rpm
Capacity40 L
Sample Viscosity (mPa s)maximum 50,000
Torque (max)60 Ncm
Chuck Range (Diameter)1-13 mm
Shaft Pass-Through (Diameter)up to 8.5 mm
ControlDigital
Dimensions9.3 in x 11.2 in x 3.5 in (235 mm x 285 mm x 90 mm) (LxHxW)
DisplayLED Display
FunctionStirring
IP ratingIP 54
Net Weight9 lb (4.1 kg)
Power115 / 230 VAC
Power Consumption190 W
Safety CertificationcNemkous
Speed Accuracy±1 rpm
Speed Range30 rpm ;  2,000 rpm
Timer1 minute – 99 hours, 59 minutes
Working Environment41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)
*
*
*
*
*
