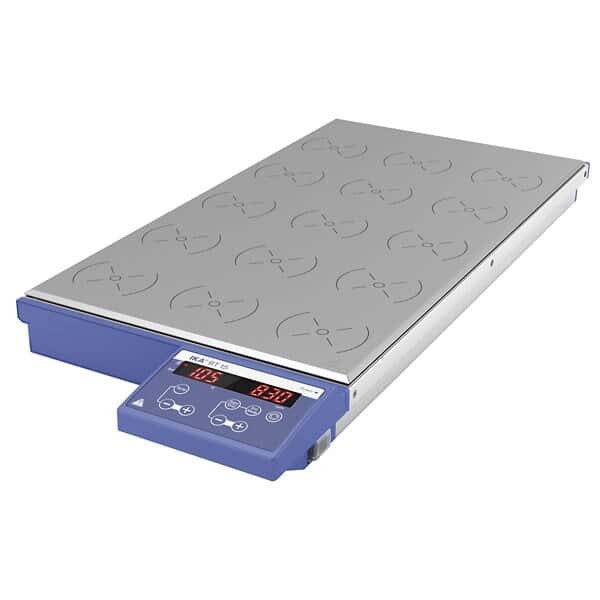

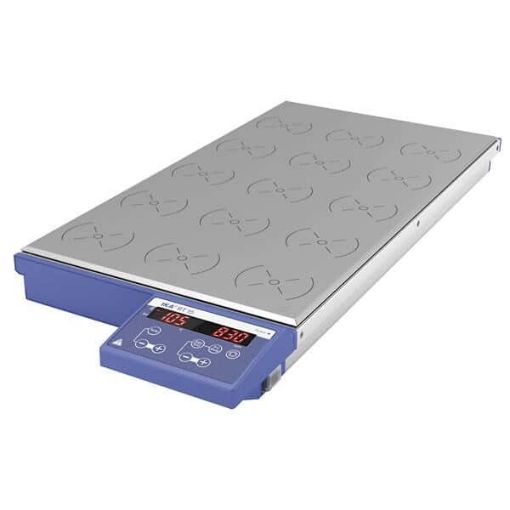

RT15 Magnetic Stirrer Hotplate, 15 place

Brand: Labco

15-position digital magnetic hotplate stirrer, designed for synchronous heating and stirring. The magnetic coil technology provides noiseless and consistent stirring on all positions. The surface temperature is infinitely adjustable up to 120?C, producing a maximum medium temperature of 70?C (depending on the used vessel). Speed remains constant, even when load changes.


- Plate: 270 x 495mm

- Stirring Volume: 400mL (per stirring position)

- Speed Range: 0 - 1000rpm

- Max. Stir Bar: 30mm

- Temp. Range: 50 - 120c

SKU: 3692600
POA

i h

NUMBER OF STIRRING POSITIONS 15

STIRRING POSITION DISTANCE 90mm

SPEED DEVIATION OF INDIVIDUAL STIRRING POSITIONS 0%

STIRRING QUANTITY MAX. PER STIRRING POSITION (H2O) 0.4L

SPEED ADJUSTMENT 10rpm steps

SPEED RANGE 0 - 1,000rpm

STIRRING BAR LENGTH 25 - 30mm

HEAT OUTPUT 580W

HEATING TEMPERATURE RANGE Room temp. -120˚C

HEAT CONTROL LED ADJUSTABLE SAFETY CIRCUIT 50 - 150˚C

SET-UP PLATE MATERIAL Aluminium alloy

SET-UP PLATE DIMENSIONS 270 x 495mm

HEATING RATE (1L H2O IN H1500) 3K/min

DIMENSIONS (W X H X D) 280 x 60 x 610mm

WEIGHT 10.5kg

PERMISSIBLE AMBIENT TEMPERATURE 5 - 40˚C

PERMISSIBLE RELATIVE HUMIDITY 80%

PROTECTION CLASS ACCORDING TO DIN EN 60529 IP 40

VOLTAGE 230V

FREQUENCY 50/60Hz

POWER INPUT 620W

*
*
*
*
*
