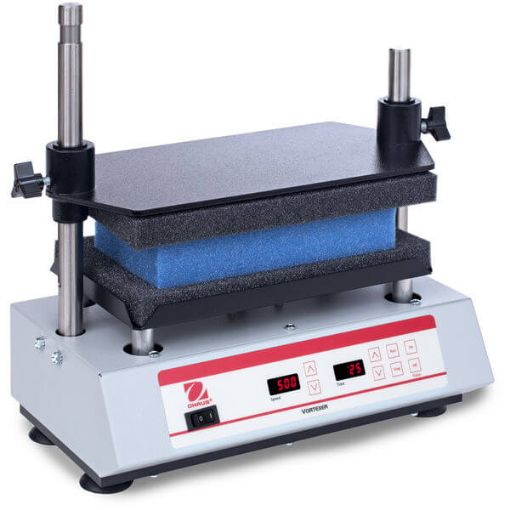

Image is only for illustration purposes, refer to description for more information

Vortex Mixer - VXMTDGBAU

Brand: Ohaus
SKU: VXMTDGBAU
POA

i h
Applications
Suspensions, Genotyping, High Throughput DNA and RNA Testing in Clinical Labs
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously (digital models)
Operation
Detachable 3-wire cord and plug (included)
Communication
N/A
Construction
Stainless steel foam rack for (50) 12 mm diameter tubes (included), interchangeable foam racks for vortexing tubes from 10 - 29 mm in diameter
Design Features
N/A

SPECIFICATIONS
ControlDigital
Duty RatingContinuous
Orbit0.1 in (3.6 mm)
Speed Range500 rpm – 2500 rpm
Capacity4.5 kg
Timer1 second - 9999 minutes
Dimensions9.5 in x 16 in x 15.1 in (241 mm x 406 mm x 384 mm) (LxHxW)
Net Weight41 lb (18.7 kg)
Power230V, 1A, 50/60Hz
Power Consumption100 W
Safety CertificationCE;  TUV
Tray Size7.25 in x 12.25 in (184 mm x 311 mm)
Working Environment39 - 104°F, 20% to 80% RH, non-condensing (4 - 40°C, 20% to 80% RH, non-condensing)
*
*
*
*
*
