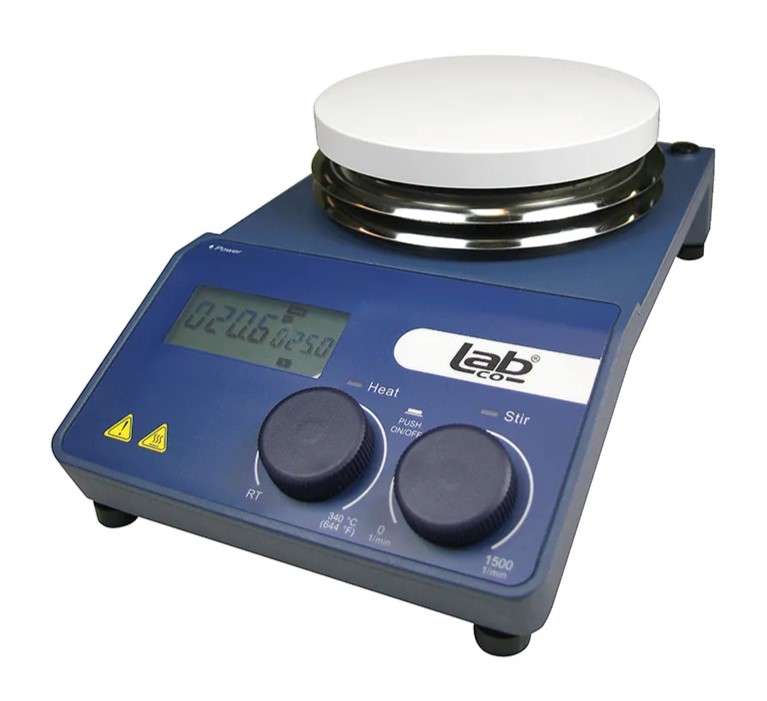

Image is only for illustration purposes, refer to description for more information
  • Home /
  • Magnetic Stirrer Hotplate 20L - Ceramic Plate

Sorry - this product is no longer available

Magnetic Stirrer Hotplate 20L - Ceramic Plate

Supplied With:

Protective cover (400.100.208)

Power Cable

User Manual

SKU: 400.100.111
POA

i h

Features and Benefits:

  • Stirs up to 20L
  • Heats up to 340C
  • Ceramic coated aluminum plate
  • Resistant to corrosion & easy to clean
  • Three selectable heating modes: fast, standard & stable
  • HOT warning indicating residual heat
  • Digital LCD displays both set & actual temperature & speed
  • External PT1000 temperature sensor improves accuracy to +0.2C degrees
  • Automatic recognition of PT1000 once connected
  • Maintenance free DC Brushless motor





Technical Data:

Plate Dimension 135mm diameter
Plate Material Ceramic Coated Aluminum
Maximum Stirring Volume  20L
Maximum Magnetic Stirrer Bar Length 80mm
Speed Range 100 - 1,500 rpm
Display Digital LCD
Stirring Positions 1
Protection Class IP21
Motor Type DC Brushless
Motor Rating Input 18W
Motor Rating Output 10W
Power  600W
Voltage 240V/60Hz
Heating Output 500W
Heating Temperature Ambient to 340C degrees
Safety Temperature 360C
Temperature Display Accuracy +0.1C
Residual Heat Warning Yes, > 50C
Dimensions (WxDxH) 160 x 280 x 85 mm
Weight 2.8Kg







































*
*
*
*
*
